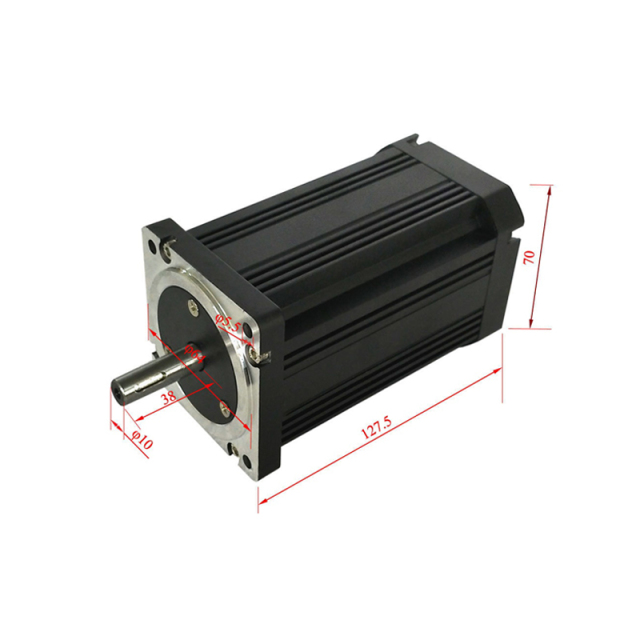

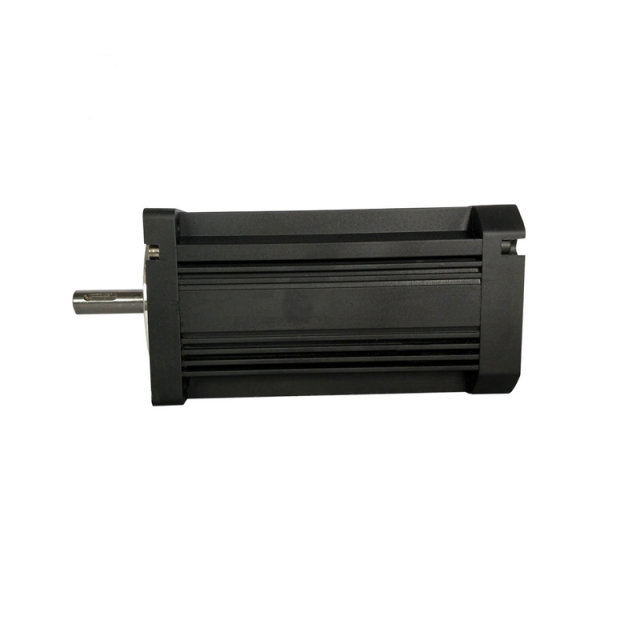

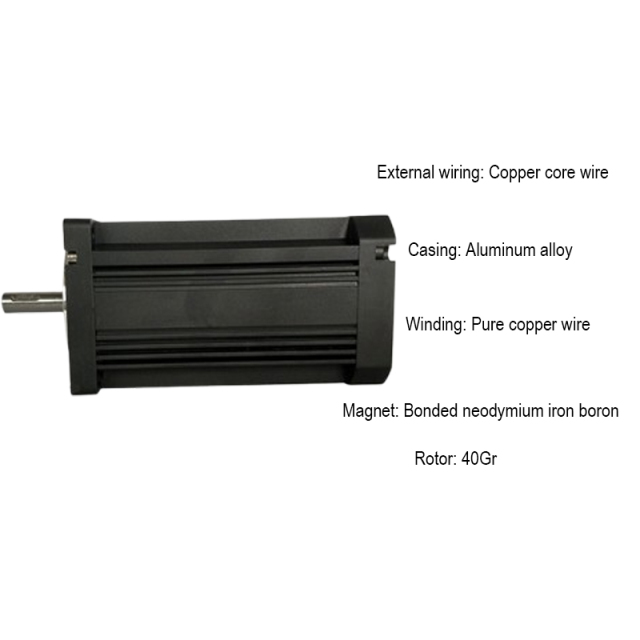

70BL-B 直流无刷电机

Name: 70BL-B 直流无刷电机
Brand: ZP MOTORS
SKU: 70BL-B
Availability: InStock
Rating: 5 (1 reviews)

No.70BL-B

参数 Parameter
型号 Model: 70BL-B
相数 Number of phase: 3
级对数 Pairs of pole: 5（可选2/4/5 Optional ）
额定电压 Voltage (VDC): 12/24/36/48
额定转速 Nominal speed (Rpm): 300-3000（Could be customized）
额定力矩 Rated torque (N.m): 0.9
额定电流 Continuous current (A): ≤10
额定功率 Rated power (W): 270
电机重量 Weight (Kg): 2.5

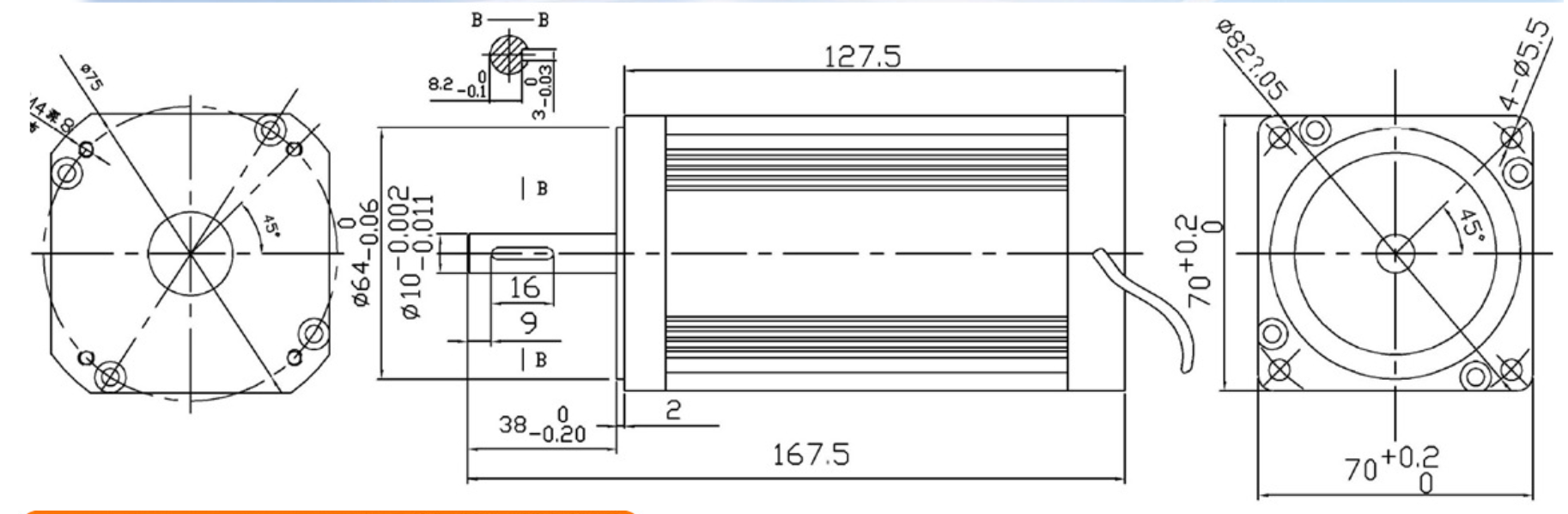

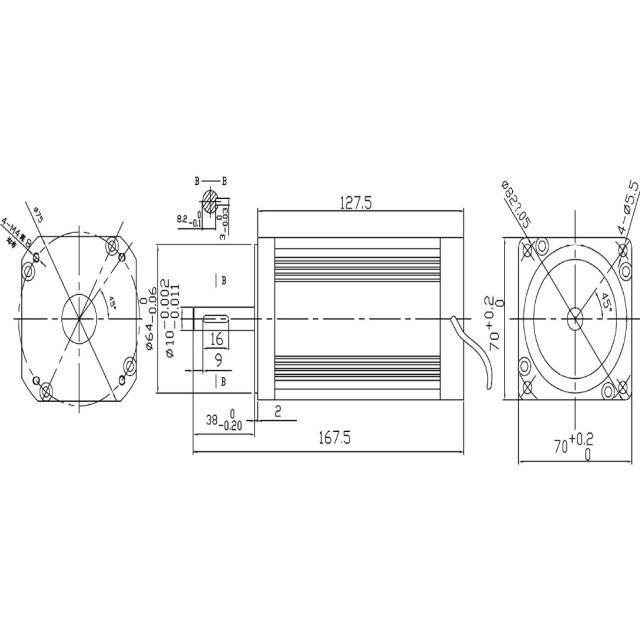

机身长度 Length (mm): 127.5
环境温度 Temperature (℃): 0-50
环境湿度 Humidity: 85% RH Max
绝缘等级 Insulation class: B Class
耐震度 Seismic (G): 0.5/2.5
防护等级 Ingress protection: IP54

GET A QUOTE

Description

Brushless DC motor
序号 SN	型号 Model NO.:	额定功率 Rated Power	额定电压 Rated Voltage	额定转速 Rated Speed	额定扭矩 Rated Torque	额定电流 Rated Current	最大电流 Maximum Current	重量 Weight
		W	VCD	RMP	N.M	A	A	KG
1	42BL-A	12	12	1000	0.1	1.7	3.4	0.3
2	42BL-A	36	24	3000	0.12	2.5	5	0.3
3	57BL	60	310	3000	0.2	0.3	0.5	0.8
4	57BL-A	100	24	3000	0.4	6	10	1.3
5	70BL	30	24	1000	0.3	2.2	5	1.1
6	70BL-A	180	24	3000	0.6	11	15	1.8
7	70BL-B	270	48	3000	0.9	8	12	2.5
8	92BL	60	24	1000	0.6	4	8	2.2
9	92BL-A	300	48	3000	1.3	9	15	3.3
10	92BL-B	600	310	3000	2	2.8	4.6	4.4

Plantary Gearbox Motor
序号 SN	型号 Model NO.:	额定电压 Rated Voltage	额定转速 Rated Speed	额定功率 Rated Power	额定扭矩 Rated Torque	减速比 Reduction Ratio
		VCD	RPM	W	N.m
1	42BL-A-YZ	24	100	30	3	1:25
2	42BL-A-YZ	24	30	18	6	1:50
3	42BL-A-YZ	24	200	24	1.2	1:10
4	57BL-YZ	24	30	30	10	1:50
5	57BL-A-YZ	24	60	60	10	1:25
6	57BL-A-YZ	24	30	60	20	1:50
7	70BL-YZ	24	50	30	6	1:20
8	70BL-A-YZ	310	70	150	18	1:30
9	70BL-B-YZ	48	100	280	27	1:30
10	92BL-YZ	24	3.3	25	72	1:120
11	92BL-A-YZ	24	200	100	5	1:5
12	92BL-B-YZ	48	20	200	100	1:50

Explosion-proof Motor
序号 SN	型号 Model NO.:	额定电压 Rated Voltage	额定转速 Rated Speed	额定功率 Rated Power	额定扭矩 Rated Torque	减速比 Reduction Ratio
1	BLB92-A	24	3000	120	0.45	1:1
2	BLB92-B	36	3000	240	0.9	1:1
3	BLB92-C	36	3000	360	1.35	1:1
4	BLB92-A-24	24	200	120	6	1:15
5	BLB92-B-36	36	120	240	20	1:25
6	BLB92-C-36	36	120	336	28	1:20
