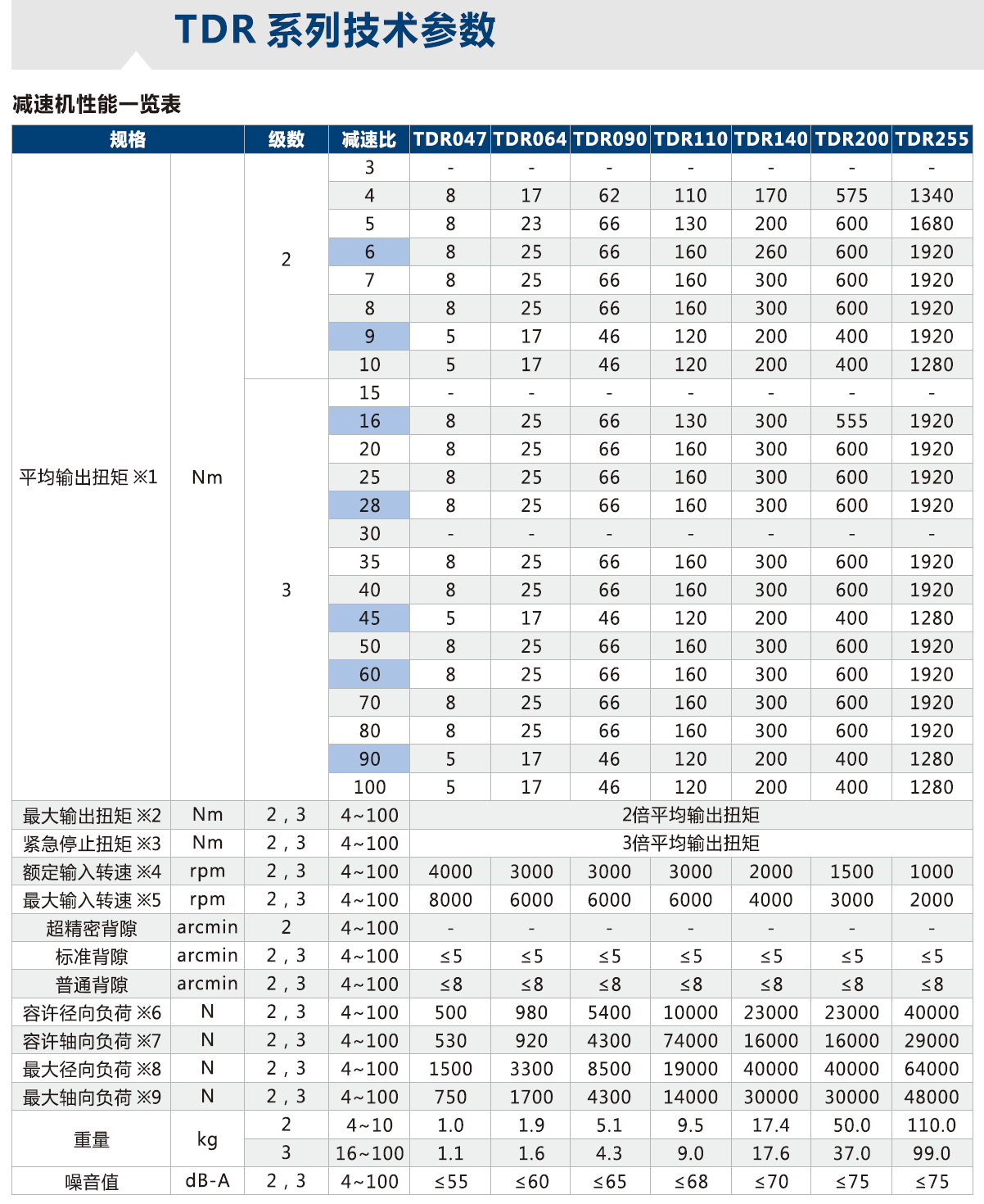

Note: The reduction ratios marked in blue are special ratios and are not currently mass-produced. If required, please contact our company. Note: Service life under continuous operation is less than 10,000 hours. ※1 Value when input speed is rated speed, service life is 20,000 hours. ※2 Maximum allowable value during start/stop (acting on shaft center, axial load is 0). ※3 Maximum allowable value upon impact (frequency: 1000 times). ※4 Maximum allowable rated input speed during operation. ※5 Maximum allowable input speed under non-continuous operation conditions. ※6 Value when input speed is rated speed, service life is 20,000 hours (acting at shaft center, axial load is 0). ※7 Value when input speed is rated speed, service life is 20,000 hours (acting on shaft center, axial load is 0). ※8 Maximum allowable radial load. ※9 Maximum allowable axial load.
